I need to push the limits of my reflector antenna design
Satellite manufacturers need creative solutions to complex problems. Providing efficiency and higher quality results, TICRA's tools define the benchmark for RF analysis and optimization of your next generation designs.
GRASP – Speed, accuracy, and efficiency
GRASP is a dedicated software tool for reflector systems enabling fast and accurate analysis and design of even the most advanced reflector antenna systems. Because most of the major players in the satellite industry contribute to the continuing development of GRASP, the software provides the versatility needed by the antenna engineer to model the primary radiation from a reflector system, accounting for imperfections such as surface errors, support struts, cut-out regions, scattering, and more.

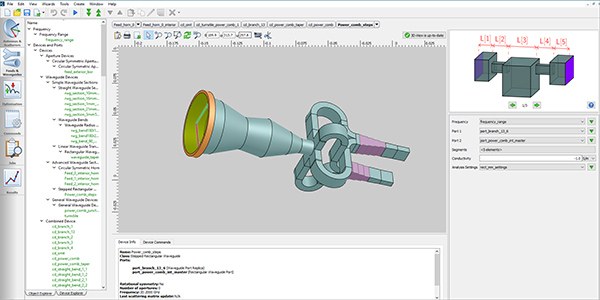

CHAMP 3D – Analysis and design of passive waveguide components and complex feed chains
CHAMP is a fast, accurate, and intuitive design optimization software for horn and reflector antenna terminals with rotational symmetry within space, defence, satcom, and telecommunications as well as within science, research, and radio astronomy. With the numerous features in CHAMP, the user is guided through the entire design procedure of horns and reflector terminals.

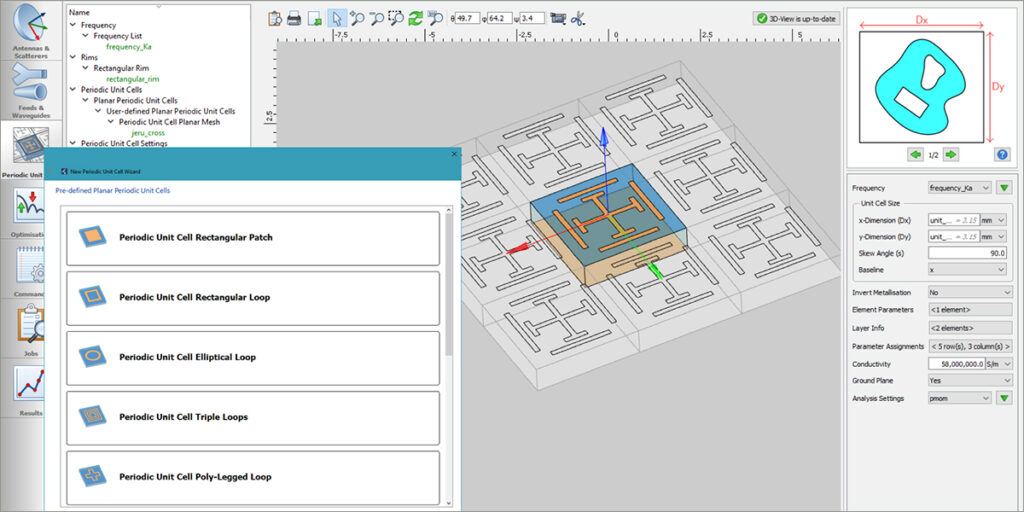

QUPES - Analysis and design of quasi-periodic surfaces
QUPES is a dedicated software tool for the analysis and design of quasi-periodic surfaces such as reflectarrays, frequency selective surfaces (FSS), transmitarrays, etc. Starting from the definition and design of the unit cell geometry to the optimisation of the entire finite-sized structures, QUPES provides the needed capabilities to design a periodic/quasi-periodic surface in a single tool, thus avoiding the need of using multiple software packages.

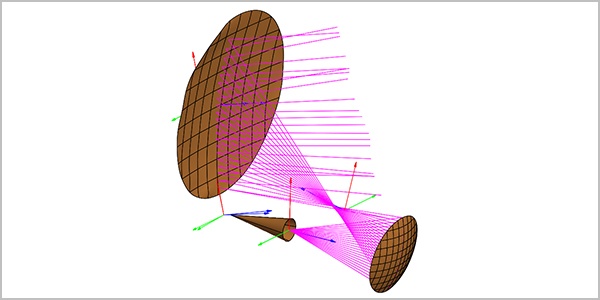

POS - Reflector antenna shaping at its best
In today’s telecommunications satellites, highly shaped reflector antennas generate contoured beams that illuminate the desired coverage regions. In close cooperation with the satellite operators, space agencies, and all major companies in the satellite industry POS is tailored to meet the most stringent requirements while providing the most accurate and efficient shaping of spacecraft antennas at the same time.

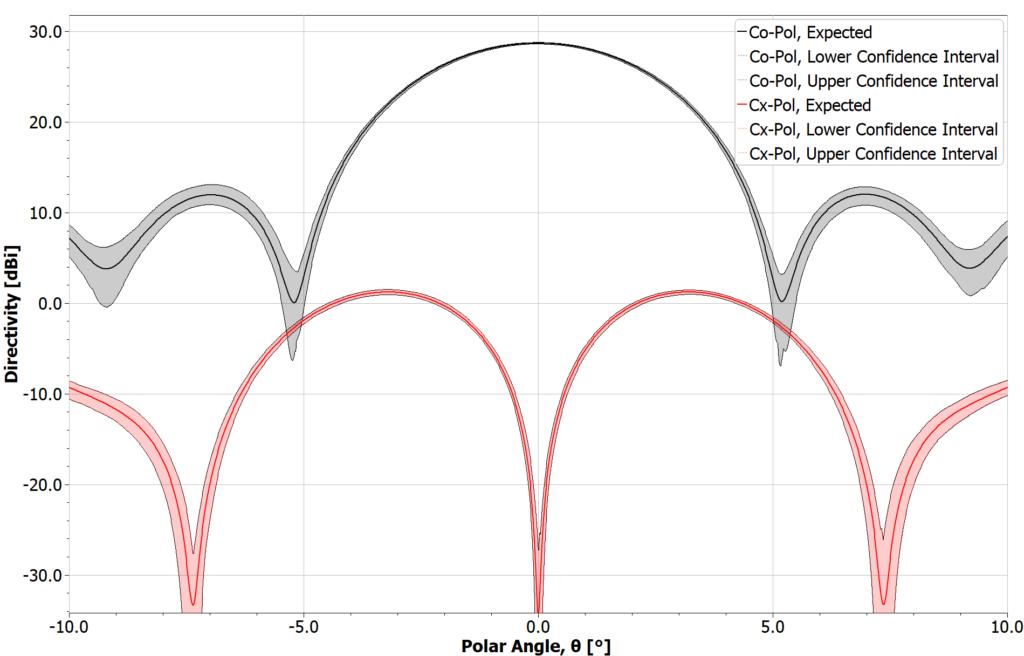

UQ - Quantify uncertainties of antenna performance
With UQ, the antenna designer may augment the usual antenna design process with uncertainties on design parameters and get data on the expected antenna performance and confidence intervals, for instance for the antenna radiation pattern. Using advanced statistical methods, UQ works together with TICRA Tools antenna analysis products, where uncertainty due to any variable specifying the antenna may be included.

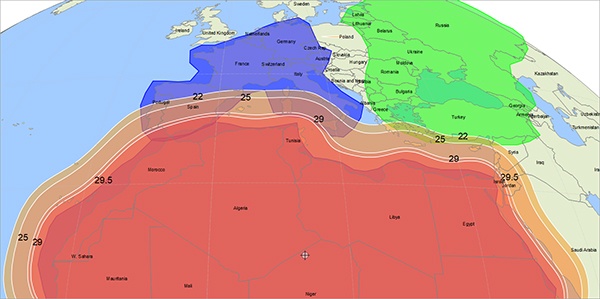

SATSOFT – Plan, design, and market communications satellites
SATSOFT is designed to speed up the process of planning, designing, and marketing communication satellite payloads for GEO, LEO, or MEO constellations. The user can quickly assess antenna coverage and gain, conduct antenna trade studies, develop shaped beam and multi-beam antenna designs, and complete many other tasks required for payload design and regulatory filings.
Contact us
Jakob Rosenkrantz de Lasson
- Director of Sales and Marketing
- +45 3334 6436
- info@ticra.com
Research papers
- Extended Higher-Order Array Decomposition Method for Fully Populated or Thinned Array Antennas and Scatterers with Connected Elements
- Higher-Order Array Decomposition Method for Arrays with Dielectric Substrates
- Design and Manufacturing of a Low-Profile Coaxial-to-Dual Ridge Waveguide Adapter for CubeSat Reflectarray Antenna Systems
