POS
The industry standard for reflector shaping combined with array optimisation and other features for design and analysis of advanced antenna systems: POS is your product for advanced payload technologies.
Features
- Shaping of single-, dual-, and multiple-reflector systems
- Array classes with full freedom of configuration for element positions and orientations
- Optimisation of array excitation coefficients
- Optimisation of array layout
- Constraints on excitation coefficients for representation of DBF performance
- Optimisation goals for design of HTS antennas
- CAD export of shaped reflector surfaces
- Large selection of optimisation goals and algorithms
Values
- Seamless integration with other products in TICRA Tools
- Industry standard for design of contoured-beam reflectors
- Convenient and fast optimisation of direct-radiating arrays and array-fed reflectors
- Thoroughly tested by the space industry for decades
Optimisation of shaped reflectors

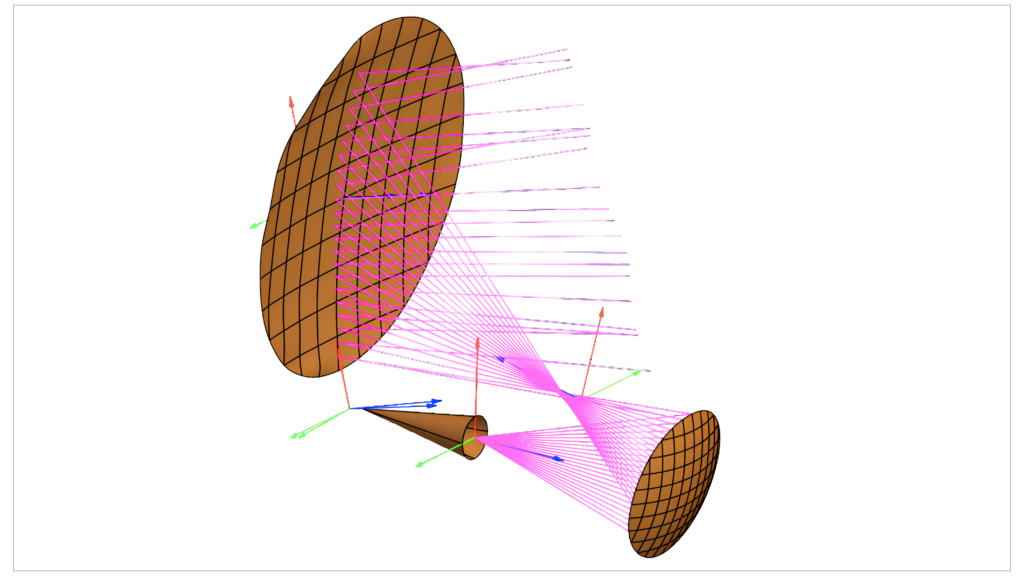

Single, dual and multiple reflector systems can be shaped to achieve contoured beams. Beam shapes can be defined by the easy-to-use built-in templates in TICRA Tools or by importning station files from SATSOFT.
Direct radiating arrays

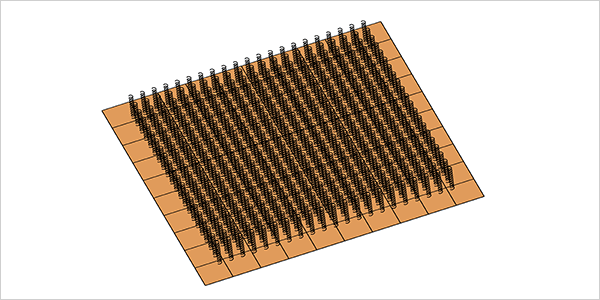

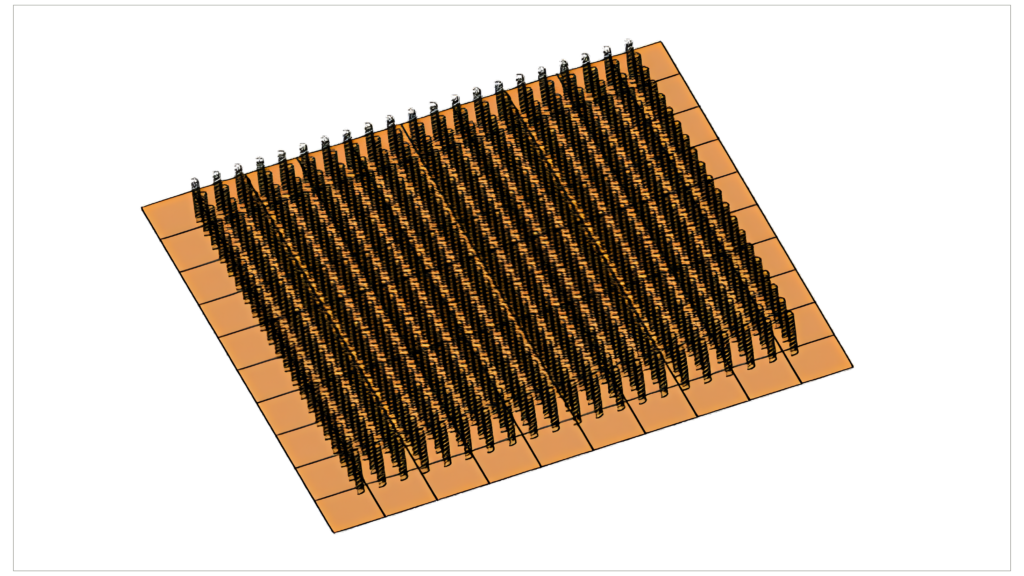

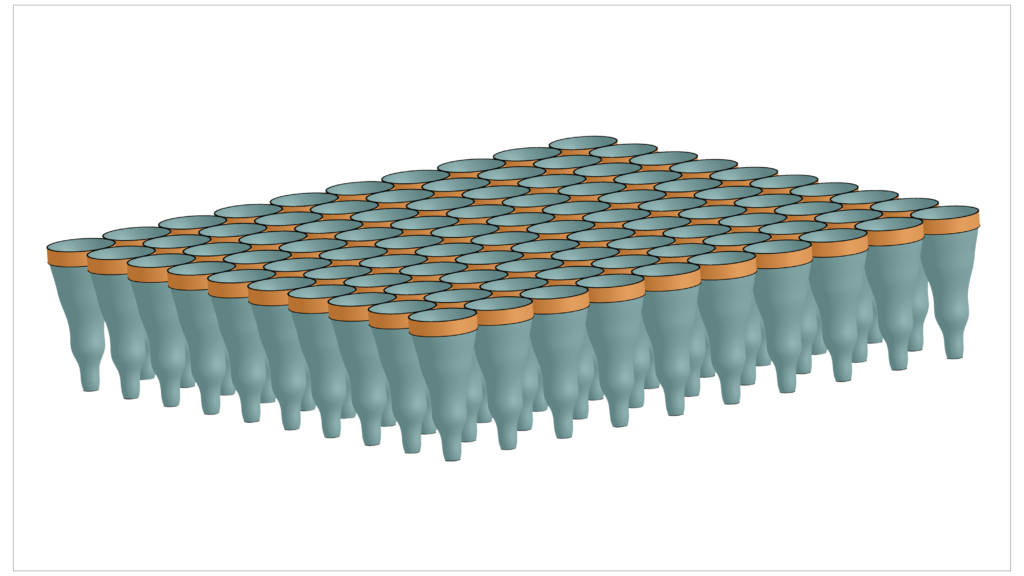

POS comes with efficient algorithms for analysis – and optimisation – of arrays and has several array models that allow the user to quickly define simple or complex arrays. Both dense and sparse arrays are supported, and the elements may be identical or unique. It is also possible to use array elements modelled in CHAMP 3D or ESTEAM in the array – and perform simultaneous optimisation of the elements and excitation coefficients.
Optimisation of array-fed reflectors

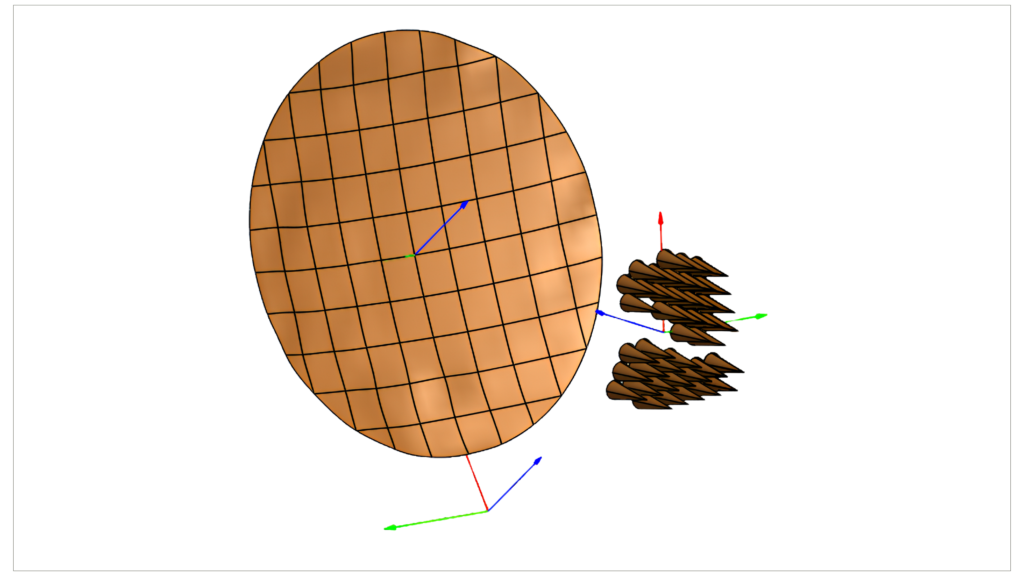

Array-fed reflectors can be optimised in terms of reflector shape, array geometry, and excitation coefficients. The combination of efficient algorithms for reflector analysis and array optimisation makes it feasible to optimise very complex antenna systems fast and efficiently.
Excitation coefficients can also be optimised for several reflector shapes simultaneously to get the best performance under multiple thermal conditions.
Surface constraints

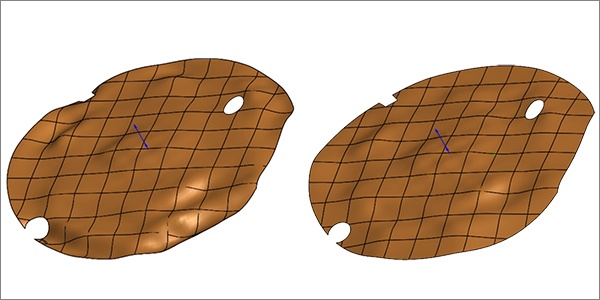

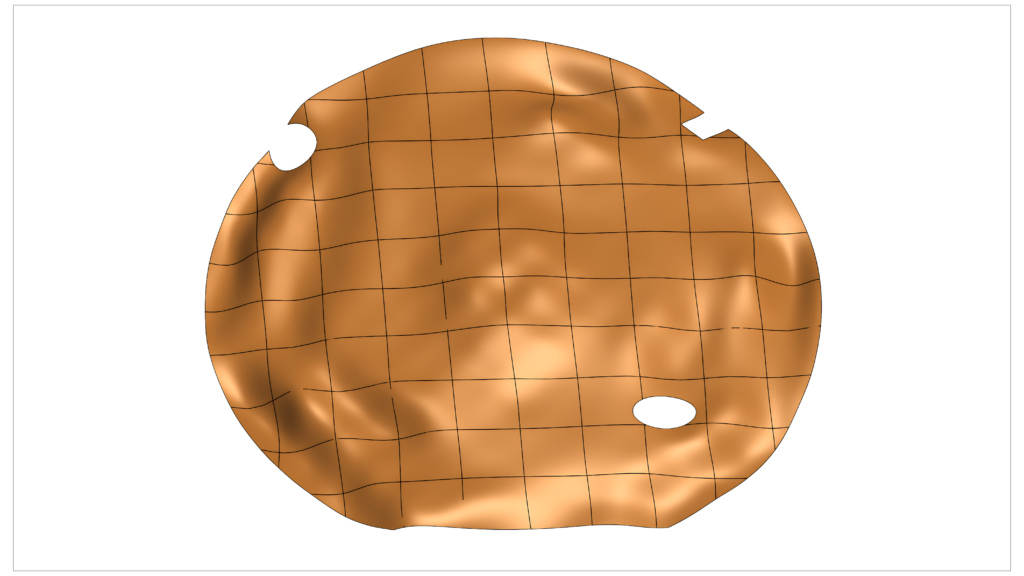

Manufacturing-imposed constraints for surface curvature and constraints imposed by the payload envelope on surface displacement can be included in the optimisation. The same is true for constraints on feed positions and constraints on the dynamic range in beam-forming networks.
POS integrated in TICRA Tools

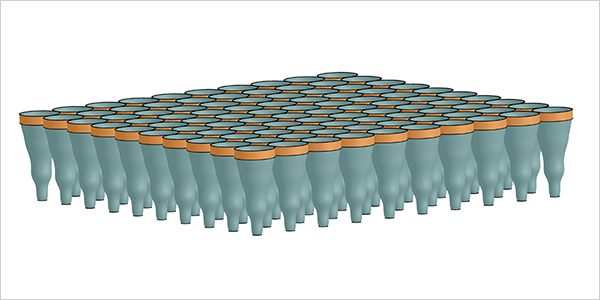

POS is integrated in TICRA Tools. This makes it easy for the user to combine the different products of TICRA in their daily work. It is, for example, possible to use horns modelled in CHAMP 3D as elements in arrays or as feeds for shaped reflectors – or perform scattering analysis with the optimised antenna designs in ESTEAM.
